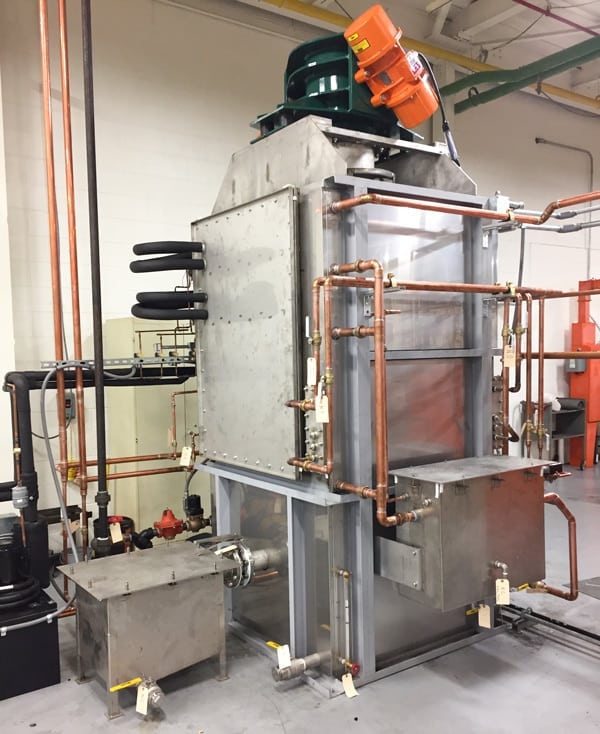

High Quality Vibra Degreasing Systems
Vibra Degreasing Systems use a combination of solvents, solvent vapors and vibration to quickly clean small metal parts. Loose metal placed in the vibrating spiral degreaser ensures high-value metals, like titanium, are stripped of all oils and contaminants before recycling.
Systems are constructed with a vertical design that minimizes required floor space.
VIBRA DEGREASING SYSTEM KEY FEATURES- Tank: stainless steel with optional chip diverting pan
- Coils: Stainless steel finned with manifold piping for single point connection
- S.S.: Water separator with internal cooling coil
- Spiral: stainless steel with steam heated jacket for drying assistance
- Freeboard: 75% standard with 100% optional
- Clean-out door located on the boil chamber
- Water jacket standard for solid tank models
- Heating is standard steam with electric as an option. Spiral isn’t heated if Electric heaters are used
- Standard sizes are available from 4" to 12" with productions from 1000 cu.ft./hr to 45,000 cu.ft./hr
VIBRA DEGREASING SYSTEM OPTIONS- Hinged door for easier removal of the spiral in low ceiling applications
- Freeboard chiller
- Super heat
- Heat insulation package
- Automatic solvent make-up
- Exhaust system
- Load / unload conveyors
- Glass viewing doors
- Special spray patterns
- Marine cleanout doors
- Distillation system
- PLC system with touchscreen
