Fabrication

Custom Fabrication Services

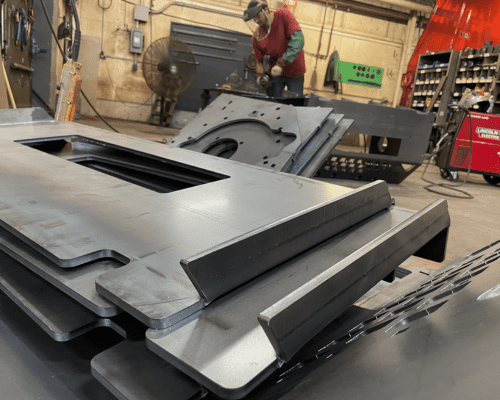

We’ve spent nearly two decades serving various industries in Southeast Ohio and the surrounding areas with specialized metal fabrication services. Our job shop services can handle most metal processes in a variety of materials including carbon, hastelloys, aluminum, plastics, steel and other specialty metals by cutting, rolling, forming and creating any type of sheet metal configuration our clients require.

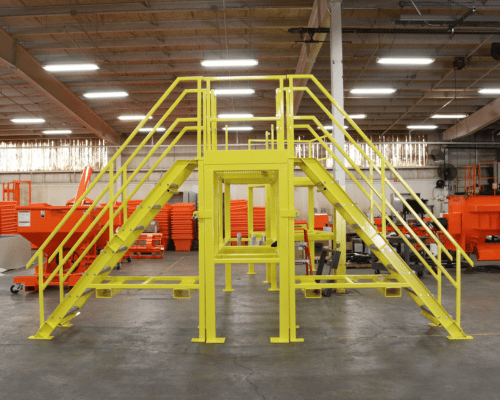

Customers bring their requests to us knowing we will deliver on time, every time. We’ve fabricated mezzanines, catwalks, ladders, stairs, storage tanks, cabinets and more.

Play Video

Invested in Technology

Our shop is equipped with technology and specialized equipment designed to create nearly anything. We regularly invest in upgrading our fabrication equipment to the best on the market to remain ahead of the pack – including three lasers, multiple brake presses and more.

 Laser Cutting

 EZG has state of the art cnc laser cutting capabilities. Our Mazak 10k fiber laser is one of the fastest cutting machines on the market. Combined with our two Trumpf CO2 lasers we have the capacity to take your job from quote to finished part in days, not weeks.

 Laser Plate Cutting Maximum: 76″ (1930.4 mm) x 154″ (3911.6 mm)up to 1″ (25.4 mm) thick

Fab Capabilities
Material Thickness
Dimension

Laser Plate Cutting Max.

up to 1" (25.4 mm) thick

Thickness

Shearing Max.

.625" (15.875 mm) x 120" (3048.0 mm)

TOLERANCE

Rolling Max.

.250" (6.35 mm) x 6' (1.82 m) wide

Material Width
dump height

Laser Plate Cutting Max.

76" (1930.4 mm)

dump height

Press Brake Max.

192" (3048 mm)

Material Length
Capacity

Laser Plate Cutting Max.

154" (3911.6 mm)

Brake Press Tonnage
Dimension

350 Tons

Automation Capabilities

RotoLas Tube Cutting System

  • Tube length which can be cut without repositioning 160" (4000 mm)

  • Min. length of tube remainder 6" (150 mm)

  • Max. tube diameter or envelope circle 14.5" (370 mm)

  • Min. tube diameter or envelope circle .60" (15 mm)

  • Max. useful chuck opening 6.5" (165 mm)

  • Max. wall thickness .50" mild steel (O2)

  • .25" stainless steel (N2)

  • .20" aluminum alloys (N2)

  • Max. tube weight 435 lbs. (200 kg)

  • Max. position deviation 0.03°

  • Max. backlash 0.01°

Customizations to Fit Your Needs

If we don’t have what you need in a standard size or specification, our custom shop can create it for you. In addition, we will retool any equipment, ours or our competitor’s. We also design supplementary items to fit into any space. Contact us to learn more about our machining services.
