Mobile Mud Hog

MSRP

$5,377.00$9,675.00

$5,377.00

In stock

Backing Plate Included
$5,430.00

In stock

Backing Plate Included
$6,407.00

In stock

Backing Plate Included
$6,460.00

In stock

Backing Plate Included
$6,730.00

In stock

Backing Plate Included
$8,650.00

In stock

Backing Plate Included
$9,675.00

In stock

Backing Plate Included
Clear
Download color@2x

Product Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Description

Specifications

Options

Benefits

Hydraulic Icon

Skid steer mounted mixer

Capacity Icon

Mixing capacities range from 4 cu. ft. - 20 cu. ft.

.11 m³ - .57 m³

Mix up Icon

Standard auxiliary hydraulic power source

Dimension

Mixes 3/4" - 1" aggregate

1.91cm - 2.54 cm

Weight

Empty weight ranges from 350 lbs. - 1400 lbs.

159 kg - 635 kg

Engine Icon

Manual and hydraulic dump systems

Thickness Icon Copy

Hydraulic drive system

Weight Icon

Manual recoil and electric start

Hydraulic Icon

Various drum end and drum wrap thickness

Thickness Icon

Overall dimensions range from 48" x 32" x 38" - 85" x 45" x 52"

1219.2 x 812.8 x 965.2 mm - 2159 x 1143 x 1320.8 mm

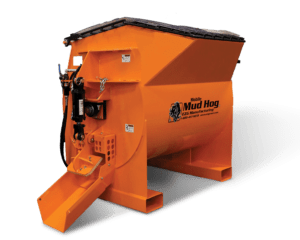

  • MMH20 Only - 11.7 HP Honda Gas Engine

  • Extended dump chute

  • Water bar for easy filling - optional, re-settable meter

  • Triple use: grout, mortar and concrete

  • Easy to load and unload - Move the mixer to the materials for loading and wherever needed for unloading with no unnecessary steps

  • Designed for use with a walk-behind skid steer loader

Comparison

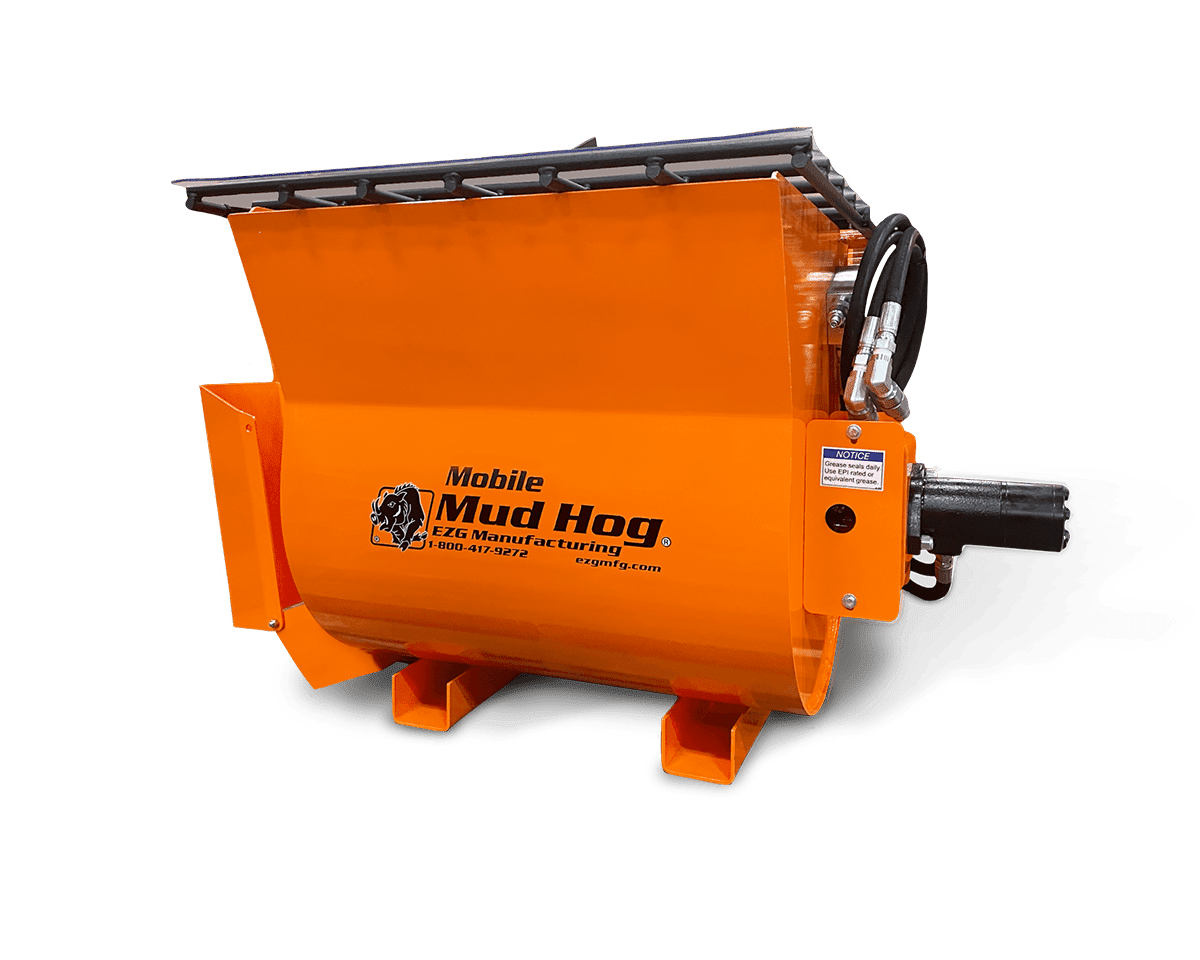

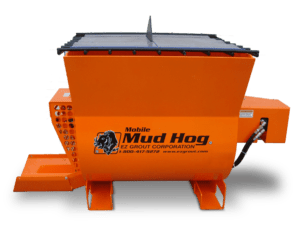

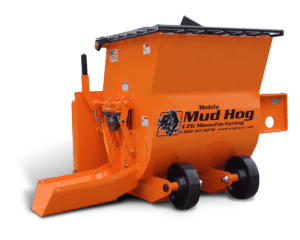

MMH4 MMH9 MMH12 MMH20

  Manual

  Dimensions

48" x 32" x 38"
1219.2 x 812.8 x 965.2 mm
(l x w x h)

54" x 36" x 42"
1371.6 x 914.4 x 1066.8 mm
(l x w x h)

72" x 36" x 44"
1828.8 x 914.4 x 1117.6 mm
(l x w x h)

85" x 45" x 52"
2159 x 1143 x 1320.8 mm
(l x w x h)

  Capacity (cu. ft / 80 lbs. bags)

4 cu. ft. (.11 m³)/3-4 bags

9 cu. ft. (.25 m³)/ 8-9 bags

12 cu. ft. (.34 m³)/11-12 bags

20 cu. ft. (.57 m³)/19-20 bags

  Gross Weight

950 lbs. (431 kg)
1950 lbs. (885 kg)
2880 lbs. (1306 kg)
4400 lbs. (1996 kg)

  Empty Weight

350 lbs.
(159 kg)

600 lbs.
(272 kg)

1000 lbs.
(454 kg)

1400 lbs.
(653 kg)

Drum Thickness

3/16"

¼"

¼"

3/8" drum end and 5/16" drum wrap thickness
Aggregate Size (in.)

¾" (1.9 cm)

¾" (1.9 cm)

¾" (1.9 cm)

¾" (1.9 cm)

  Power Supply

Auxiliary hydraulics

Auxiliary hydraulics

Auxiliary hydraulics

Auxiliary hydraulics

  Drive System

Hydraulic

Hydraulic

Hydraulic

Hydraulic

  Dump Action

Manual gate

Manual gate

Hydraulic gate

Hydraulic gate

Min. Hydraulic Flow Rate

4 gpm @ 2000 PSI

4 gpm @ 2000 PSI

10 gpm @ 2400 PSI

10 gpm @ 2400 PSI

Max. Hydraulic Flow Rate

16 gpm @ 3000 PSI

26 gpm @ 3000 PSI

40 gpm @ 3000 PSI

40 gpm @ 3000 PSI

Material Discharge (yd.³/min.)

½

½

½

½
