Versatility and Reliability

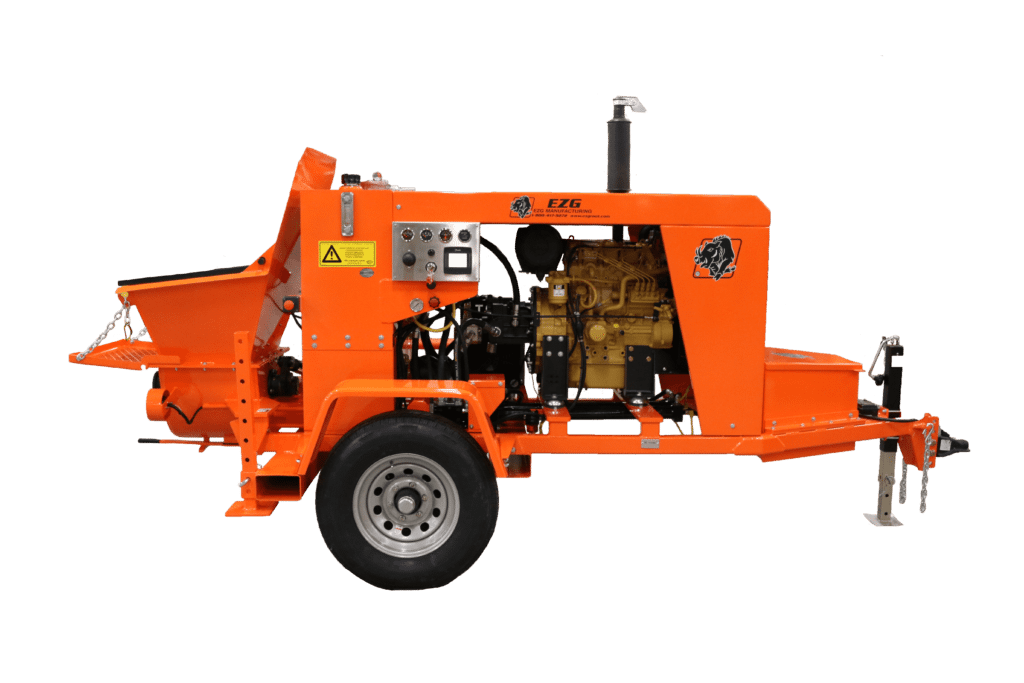

Hog Pump

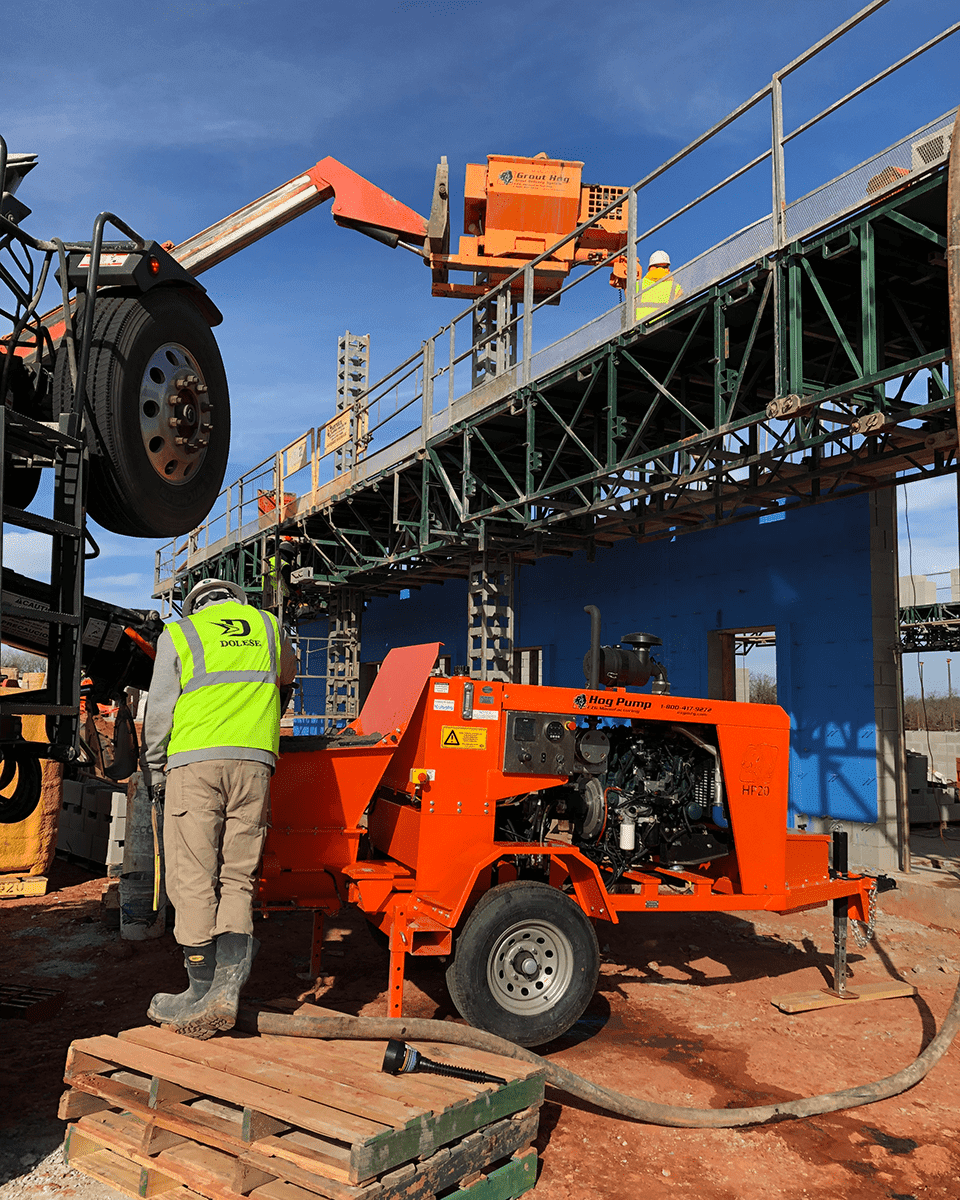

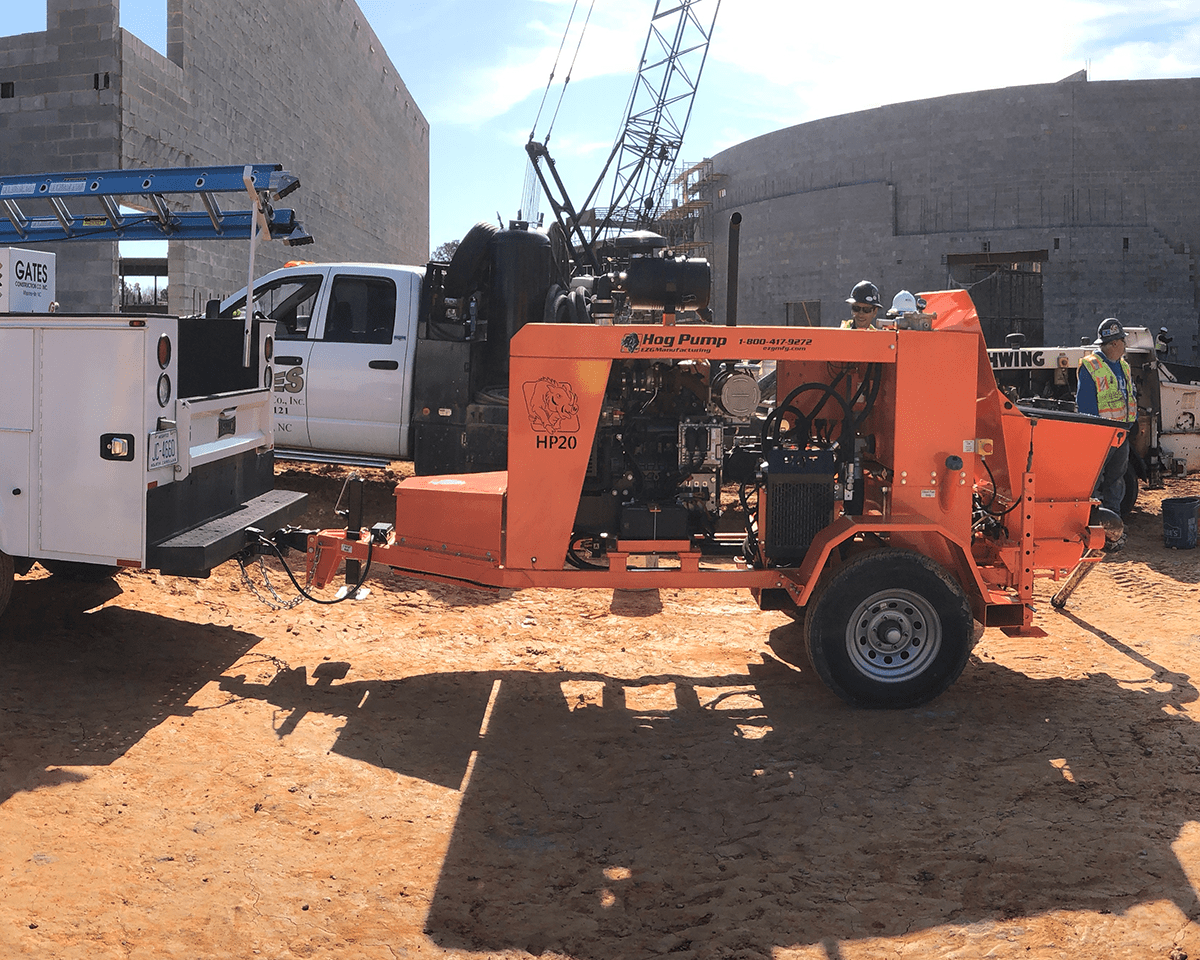

The triple use Hog Pump handles most types of construction material and is designed specifically for grout, mortar and concrete. The front can be hitched onto a truck trailer to easily bring to job sites.
The pump's valve uses a reversible S-Tube which is safer and easier to use than traditional ball valve designs. The HP-20T4 is ideal for large pump jobs requiring grout, mortar or even pea stones.
KEY BENEFITS OF PUMPS- Triple use: Grout, Mortar and Concrete

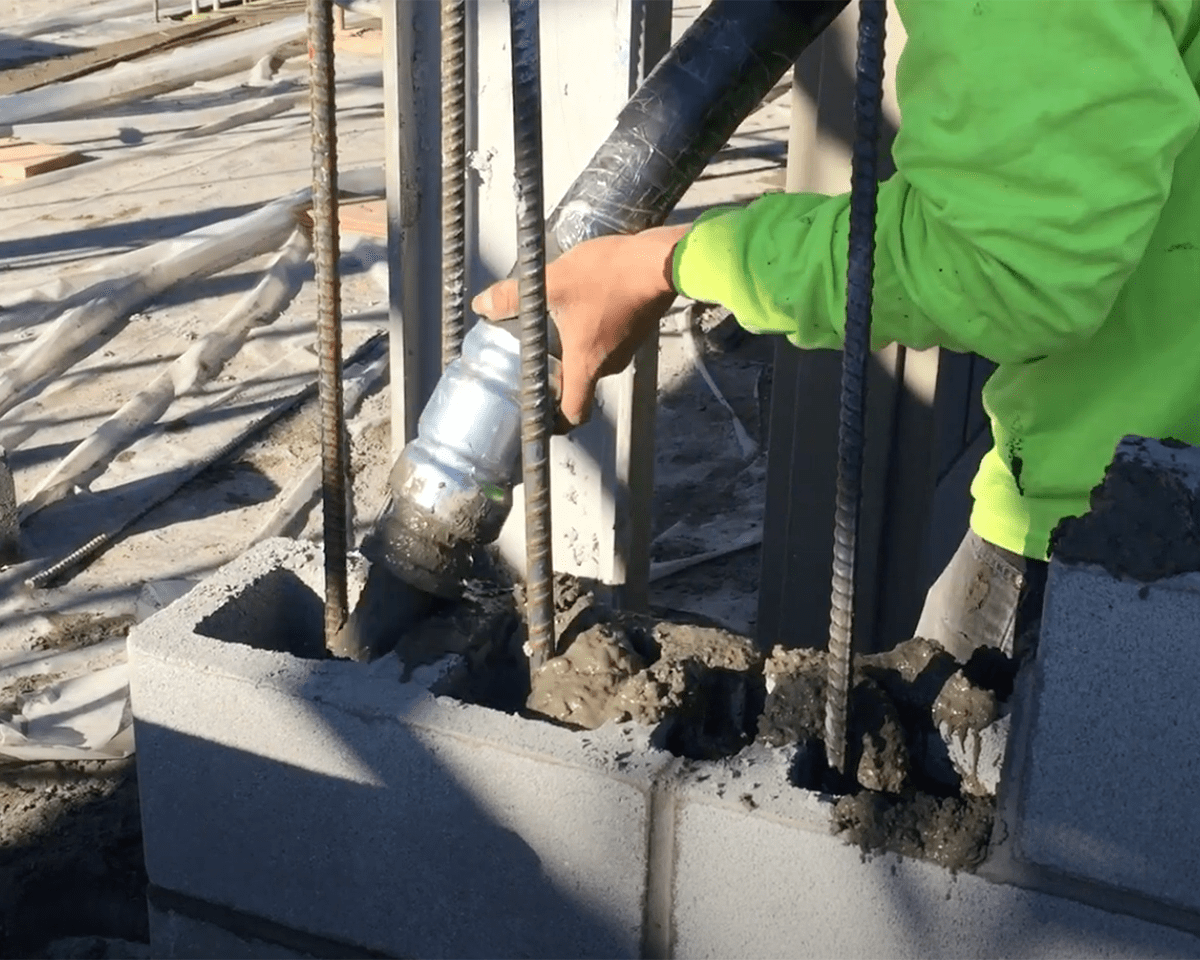

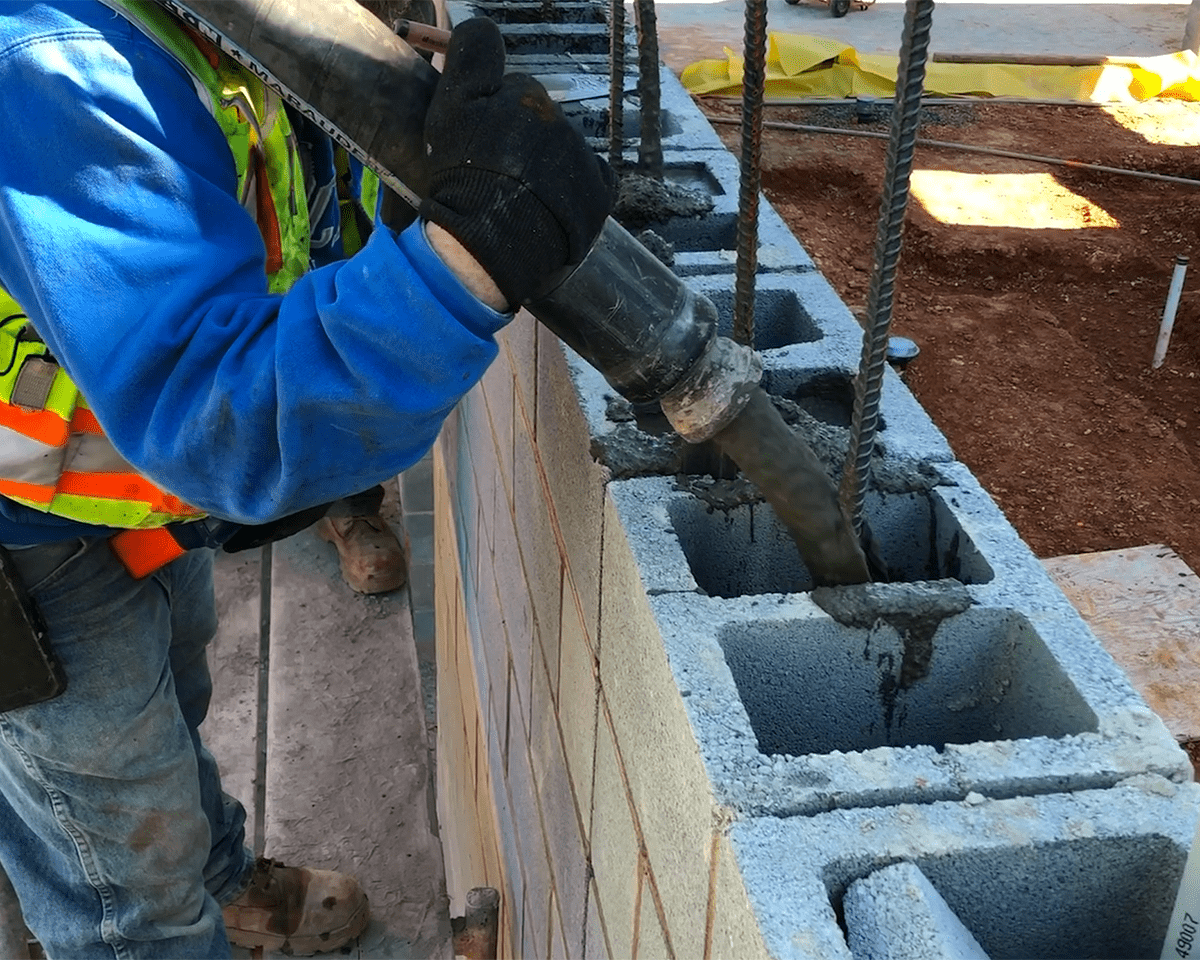

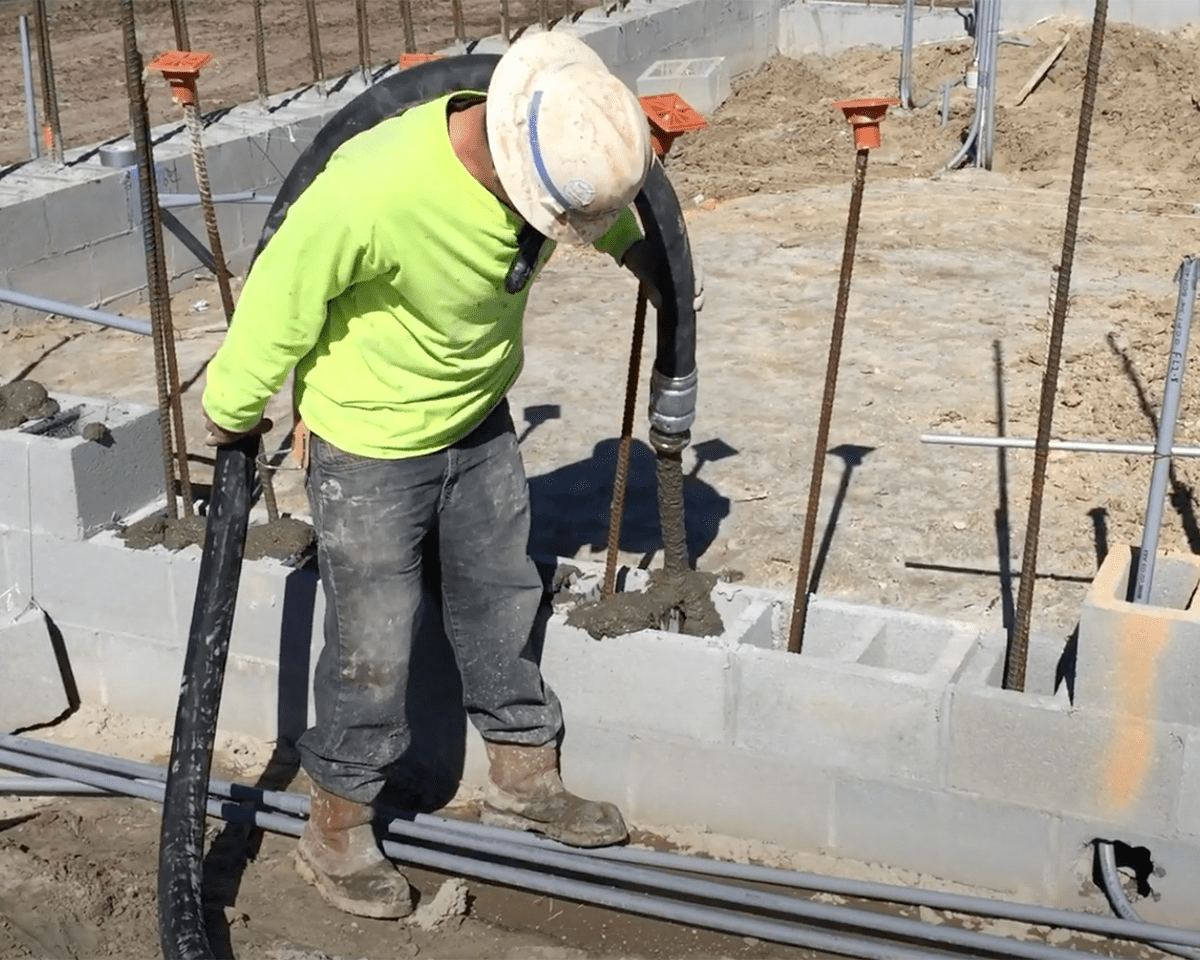

- Ideal for filling block walls with grout or pea-rock
- Delivers up to 20 yd3 per hour
- Features an 8 cu.ft. hopper
- Handles up to ¾" aggregate
- Fully reversible S-Tube valve for increased ease and safety over "ball valve" designs
HP-20T4
Specifications
- Pumps up to 20 yd3 per hour
- Only pumps up to 18 cubic yard per hour with 2” line

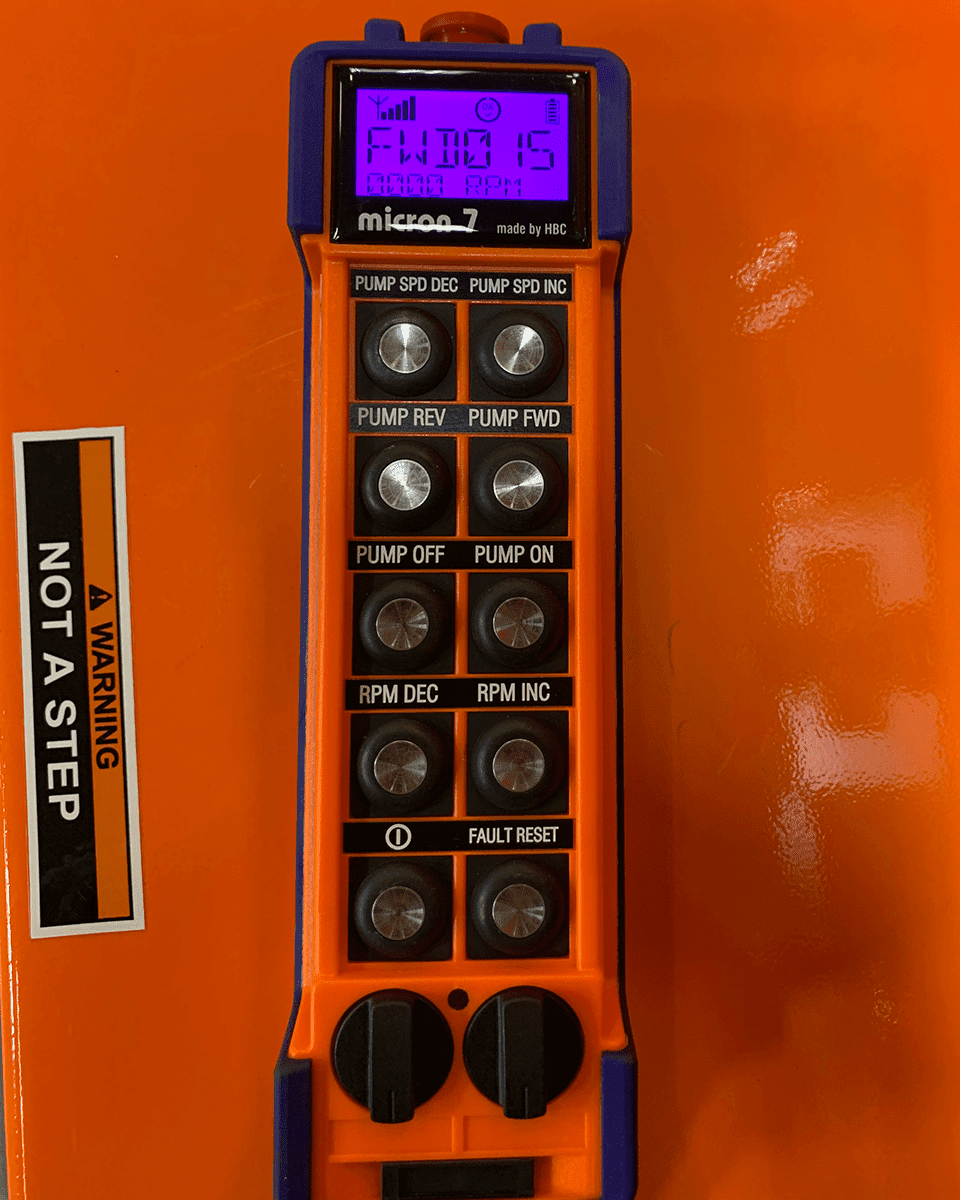

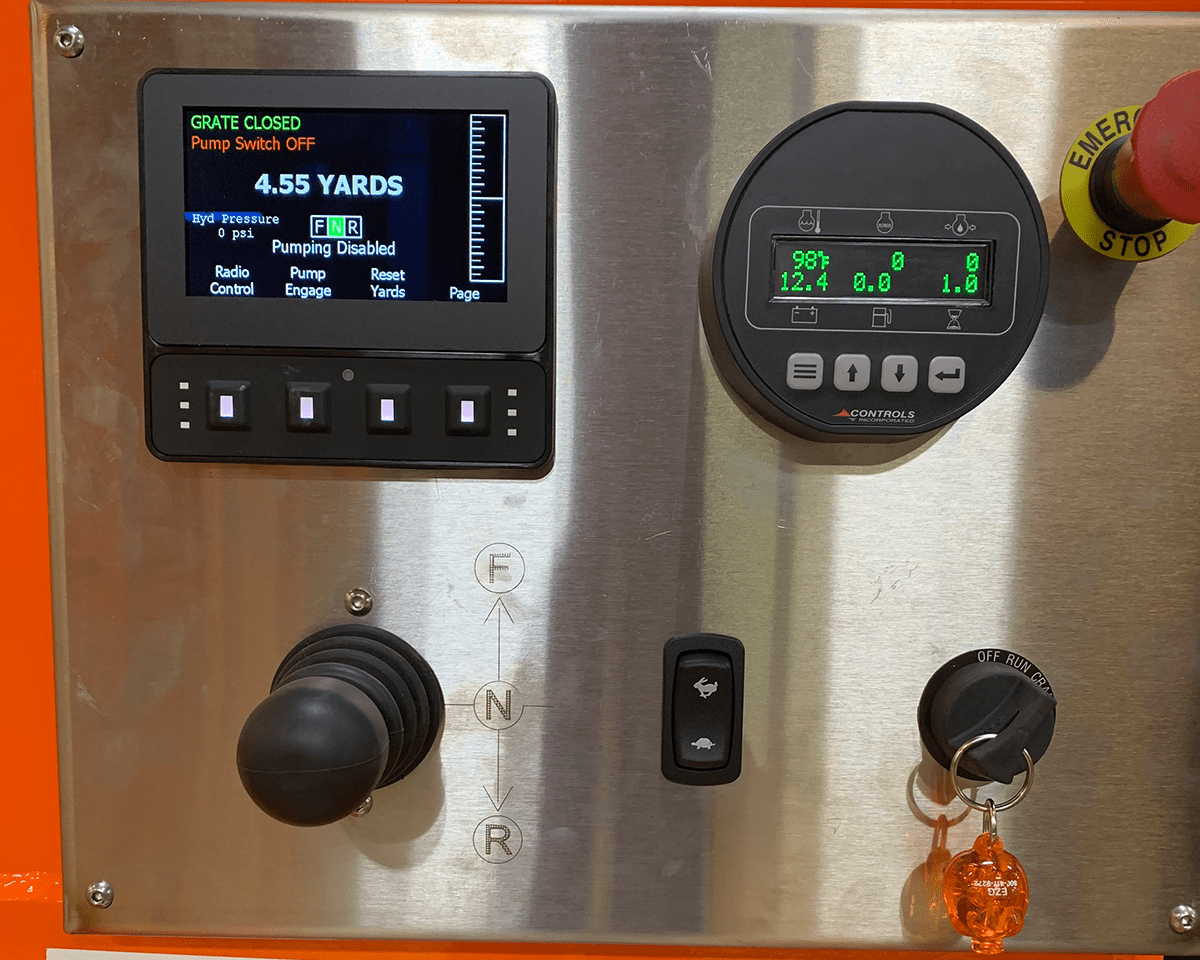

- Plus 1 control system with a DP250 digital display for diagnostic & monitoring
- 8 cu.ft. hopper capacity
- Handles up to ¾" aggregate
- Horizontal pumping distance 800 ft.; Vertical is 200 ft.
- Piston face PSI: 650
- 4" bore
- 30" stroke
- Powered by a 58 HP Kubota Diesel DOC Final Tier 4
ADDITIONAL SPECIFICATIONS
U.S. | |
| Concrete Output Per Hour | 18 cu. yds. |
| Maximum Pressure on Concrete | 800 psi |
| Maximum Aggregate Size | 0.75 in |
| Concrete Cylinder Diameter | 4 in |
| Concrete Cylinder Stroke Length | 30 in. |
| Outlet Diameter | 4 in. |
| Concrete Valve Type | S-Tube |
| Shifting Cylinders | 1 |
| Max. Pump Strokes Per Minute | 34 |
| Volume Control | 0% to the Maximum |
| Hydraulic System | Open Loop |
| Hydraulic Pressure | 3300 psi |
| Hydraulic Tank Capacity | 46 gal. |
| Engine Model - Diesel Tier 4 F | Kubota 2.4L,T4/Stage IIIB DOC Aftertreatment |
| Engine Power | 59 HP |
| Fuel Tank Capacity | 22 gal. |
| Hooper Capacity | 7 cu. ft. |
| Hooper-Height | 50 in. |
| Axle | Single |
| Axle Capacity Rating | 5,200 lb. |
| Tires | ST 225/75R15D |
| Brakes | Electric |
| Outrigger Legs | Manual |
| Length | 155 in. |
| Width | 69.5 in. |
| Height | 79 in. |

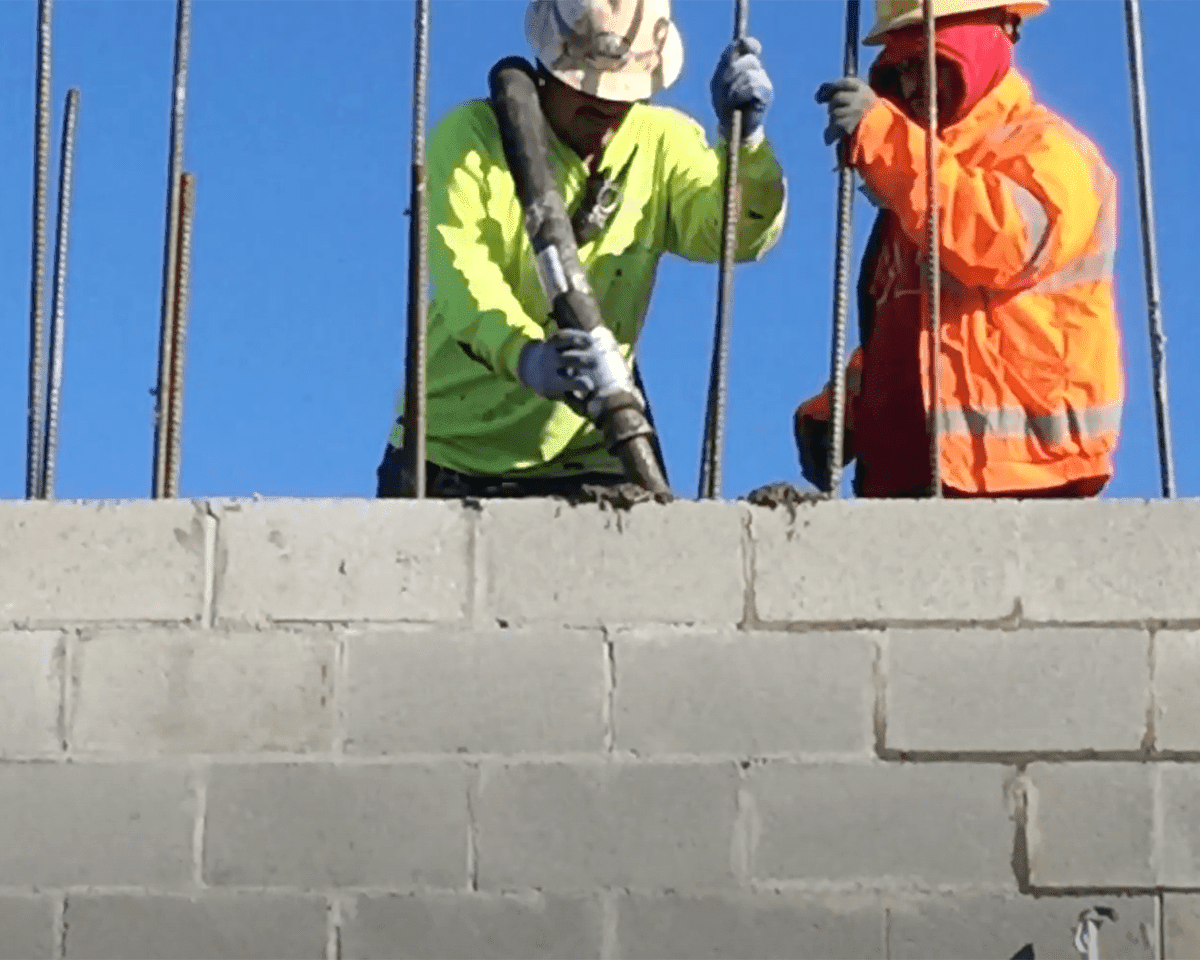

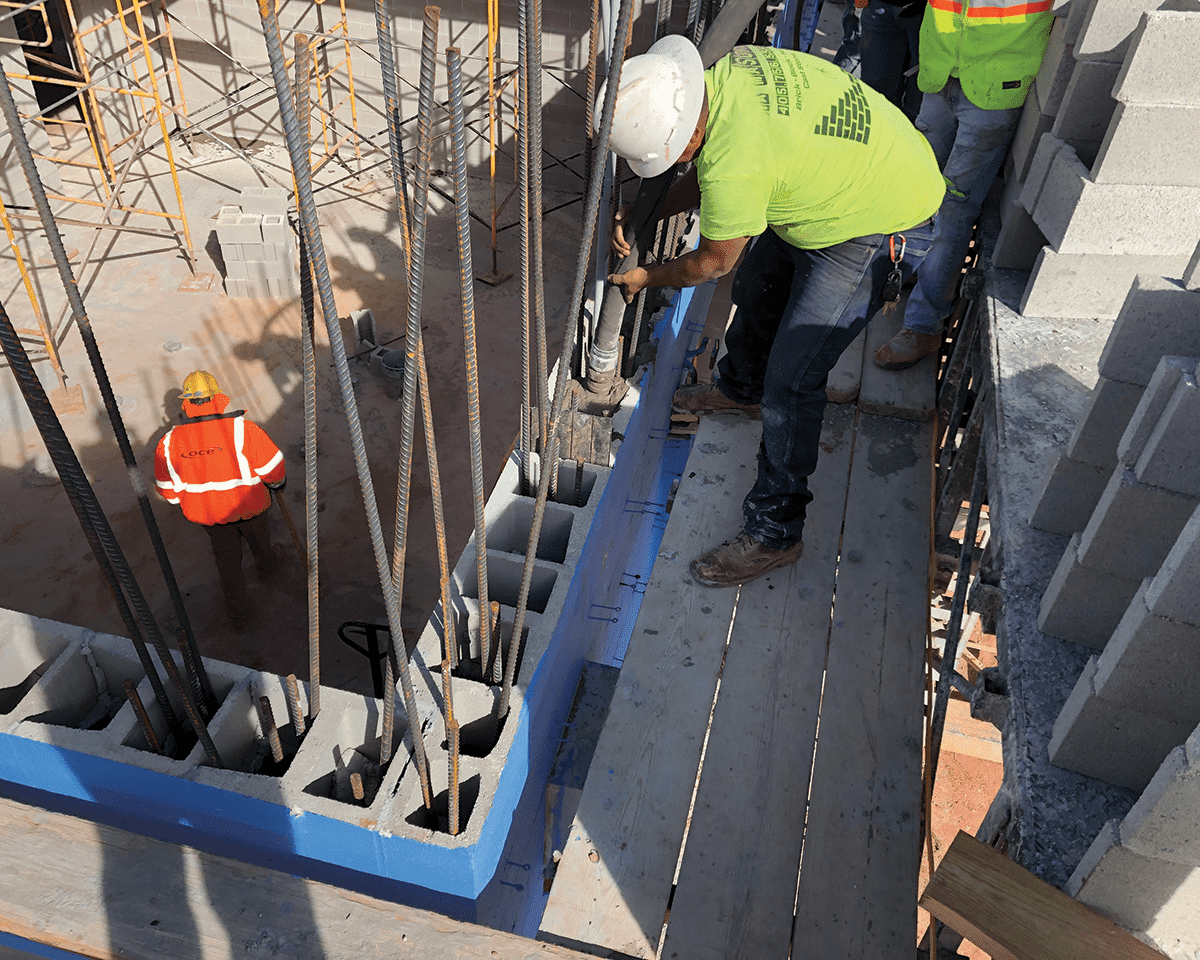

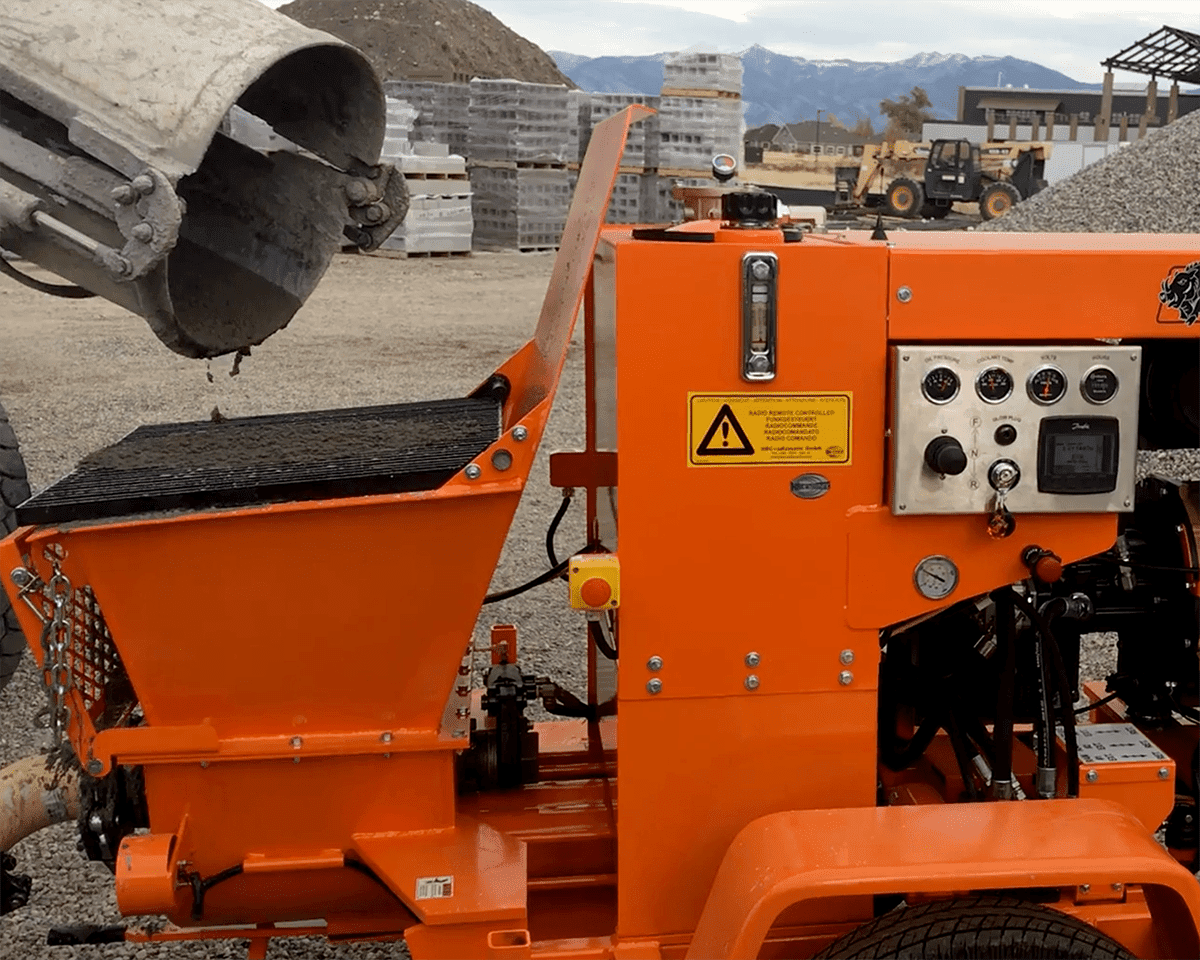

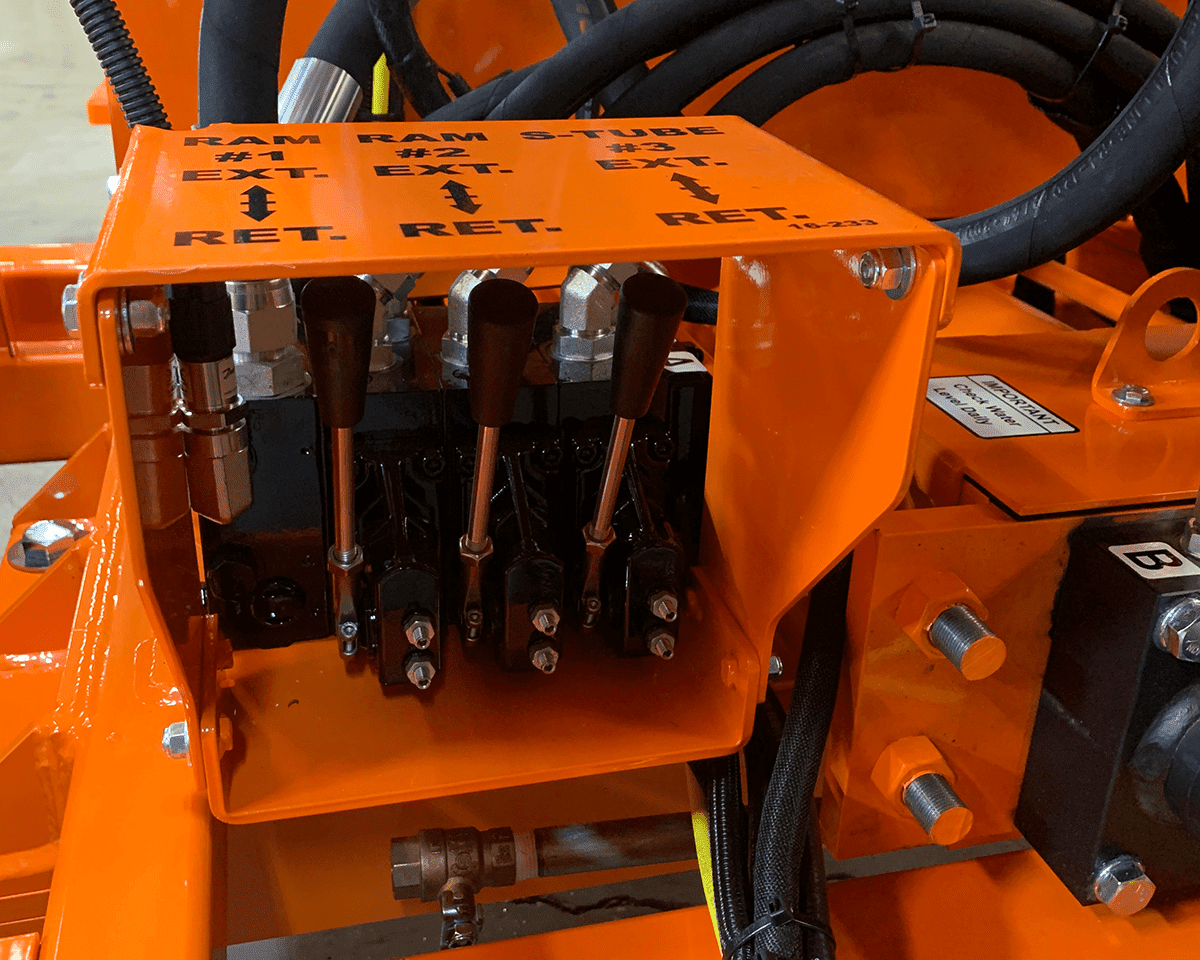

Photos
